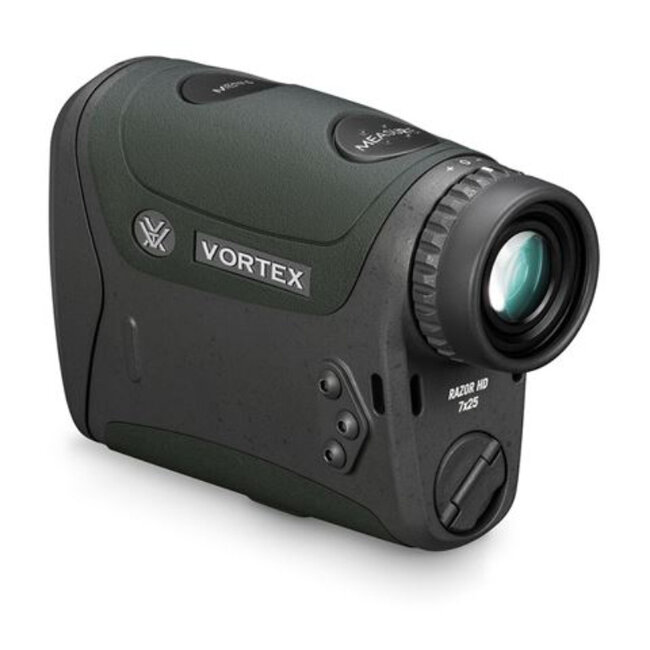

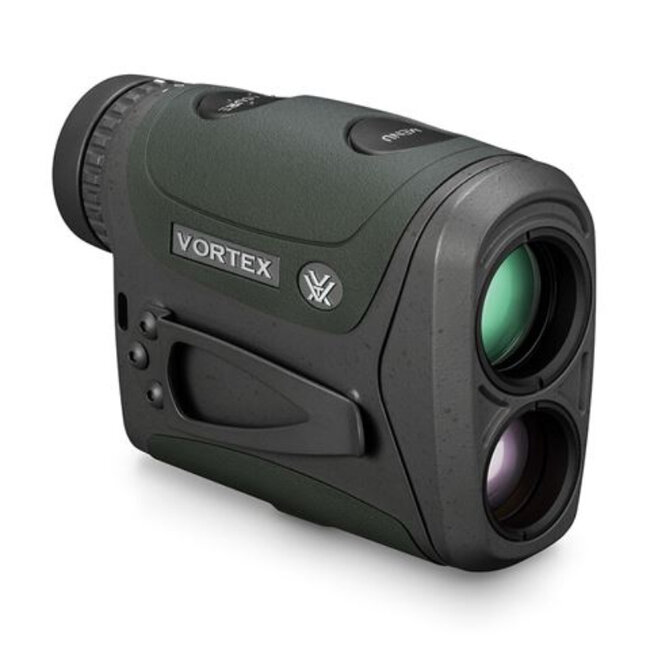

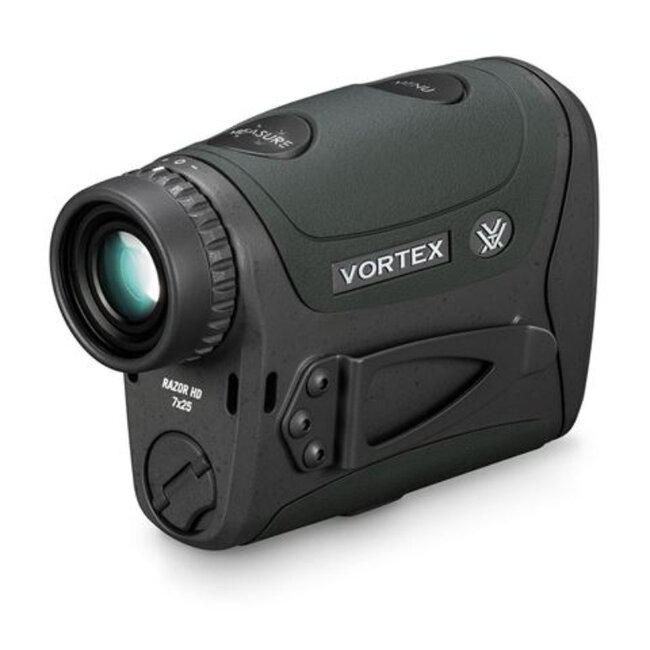

Vortex Razor HD 4000 Distance Meter

The Vortex Razor HD 4000 Distance Meter can measure the exact distance of objects located at a distance of up to a whopping 3658 meters (4000 yards).

Application Vortex Razor HD 4000

The Razor HD 4000 is the essential companion for the extreme hunter, archer and shooter. This highly effective angle-compensated laser rangefinder has four aiming modes (normal mode, front mode, rear mode and extended laser range mode) for any environment.

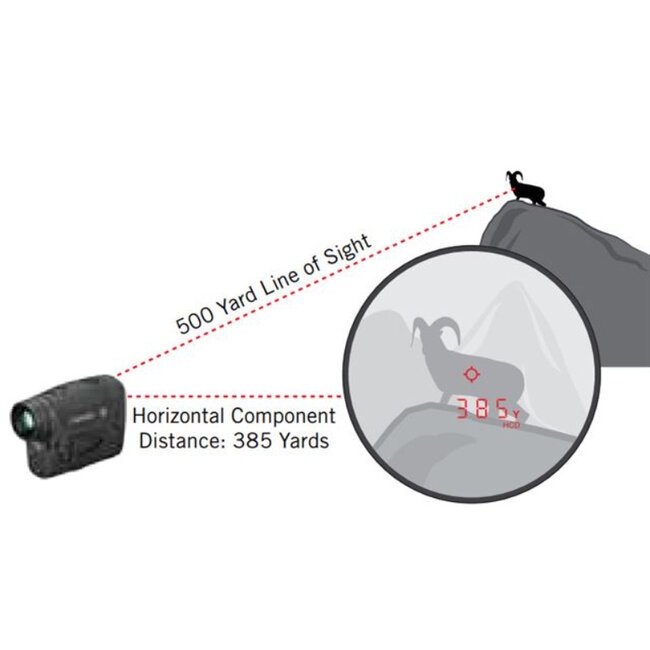

The HCD (Horizontal Component Distance) mode is intended to be the main mode. The distance shown is the distance of the horizontal component.

The HCD can be used in the following situations:

• Measuring distance on a flat surface at any range.
• Measuring distance up to a range of 731 meters (800 yards) with a slight slope
• ( less than 15 degrees ).
• Measuring distance up to a range of 365 meters (400 yards) with a moderate slope
• ( from 15 to 30 degrees ).


The Razor HD 4000 also has an LOS (Line of Sight) mode that displays actual line-of-sight distance and a scan function that displays continuous distance measurements so that moving objects, such as a group of game running away, can be tracked.

The Razor HD 4000 uses HCD (Horizontal Component Distance) technology. This makes it possible to give bow and rifle shooters the distance data needed to shoot accurately.

Lens Features:

• HD Optical System, optimized with selected glass elements for exceptional resolution and excellent color fidelity, edge-to-edge sharpness and light transmission.
• XRPlus full Multi coatings, high-quality proprietary coatings deliver the highest level of light transmission. This ensures maximum brightness.
• Armor Tek®, ultra-hard, scratch-resistant coating protects outer lenses from scratches, oil and dirt.

Construction Features:

• Rugged Design, designed for use in all situations. Compact and lightweight.
• Rubber Armor, the rubber armor provides safe non-slip grip and durable protection.
• Diopter adjusts for differences in the user's eyes. Located on the right eyepiece.
• Waterproof O-ring seals prevent moisture, dust and dirt from entering for reliable performance in all environments.
• Magnesium chassis reduces weight and increases strength.
• 1/4" Tripod connection, allowing use on a tripod.
• Attachment option for a lanyard so it can be hung around the neck. A clip is also attached to the side of the Razor HD 4000, allowing it to be easily slipped around a belt.

Other features:

• ELR, ideal for a variety of targets at extreme distances. A slightly longer response time allows for a much greater distance. Best used on tripod.
• HCD, angle-compensated range mode.
• LOS, Line of Sight, displays actual line-of-sight distance.
• Scan, displays continuous distance measurements when tracking moving objects.
• Easy-to-use Menu, very user-friendly menus with a simple backlit display.
• AWC™, due to All Weather Capable, the rangefinder can be used in all weather conditions.
• Ranging Format, can display distance in meters or yards.
• Automatic power off after 20 seconds if the rangefinder is not used.
• Display has five brightness levels.

Delivery Scope:

1x Vortex Razor HD 4000
1x Carrying case
1x Lens cloth
1x Allen Key
1x CR2 battery
